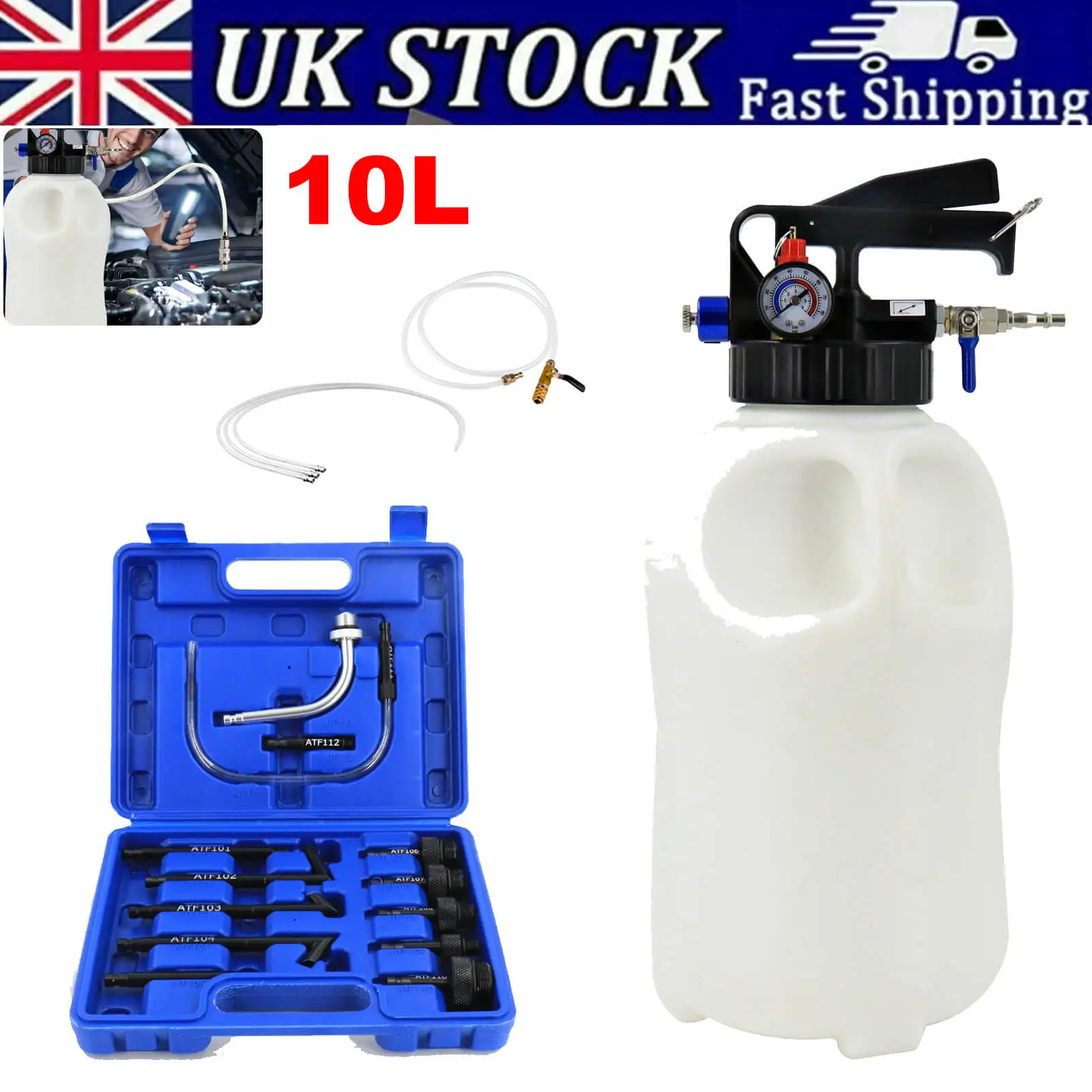

10L Manual Transmission Fluid Filling Pump Kit, ATF Refill Dispenser Tool Set with 13Pcs Universal Adapters for Auto Gearbox Oil Replacement

Attention!!!

1.We don't have a manual for this product. If you don’t know how to use it, please contact us.

2.The container may have dents or cracks during transportation,but does not affect the use of tools, please understand.



Features:

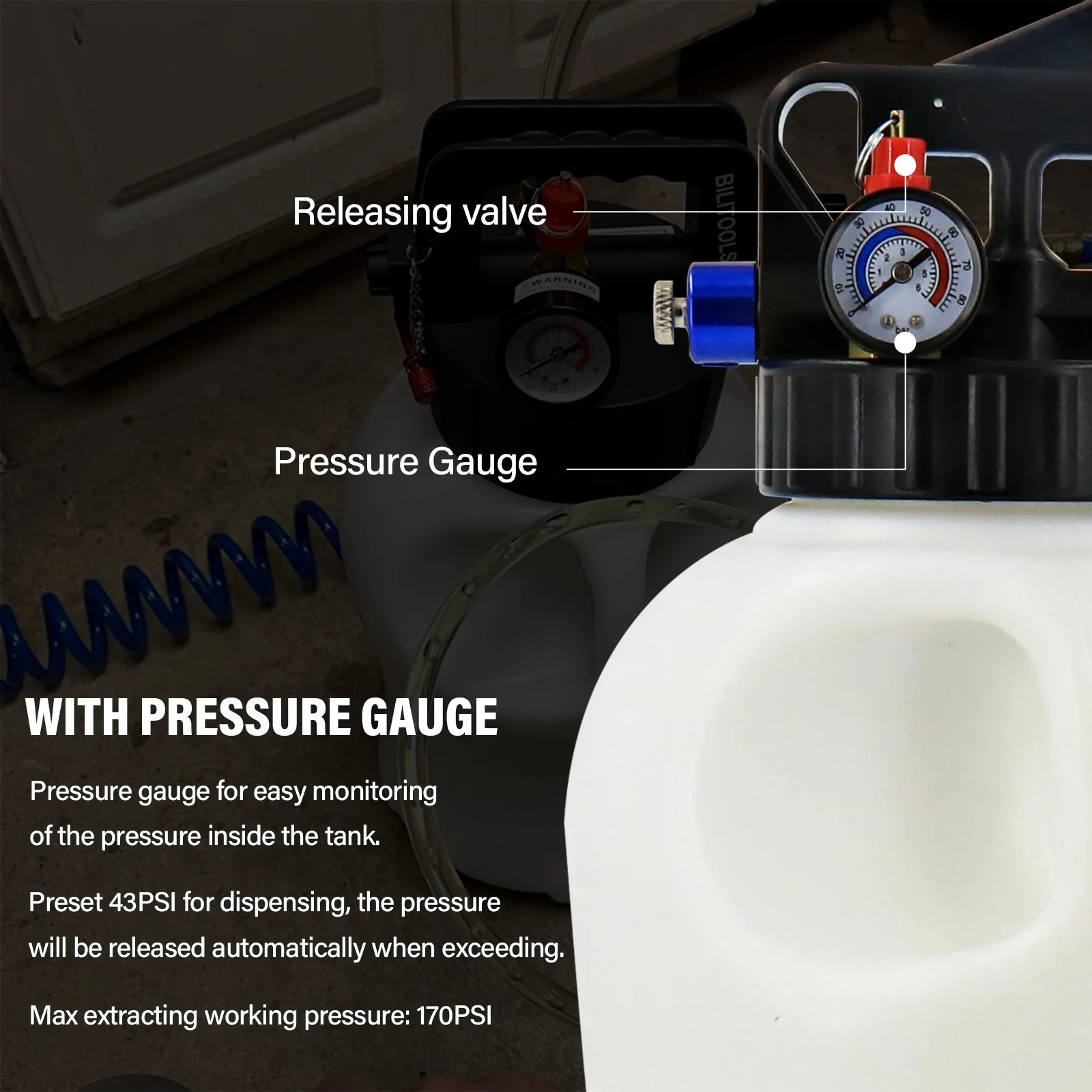

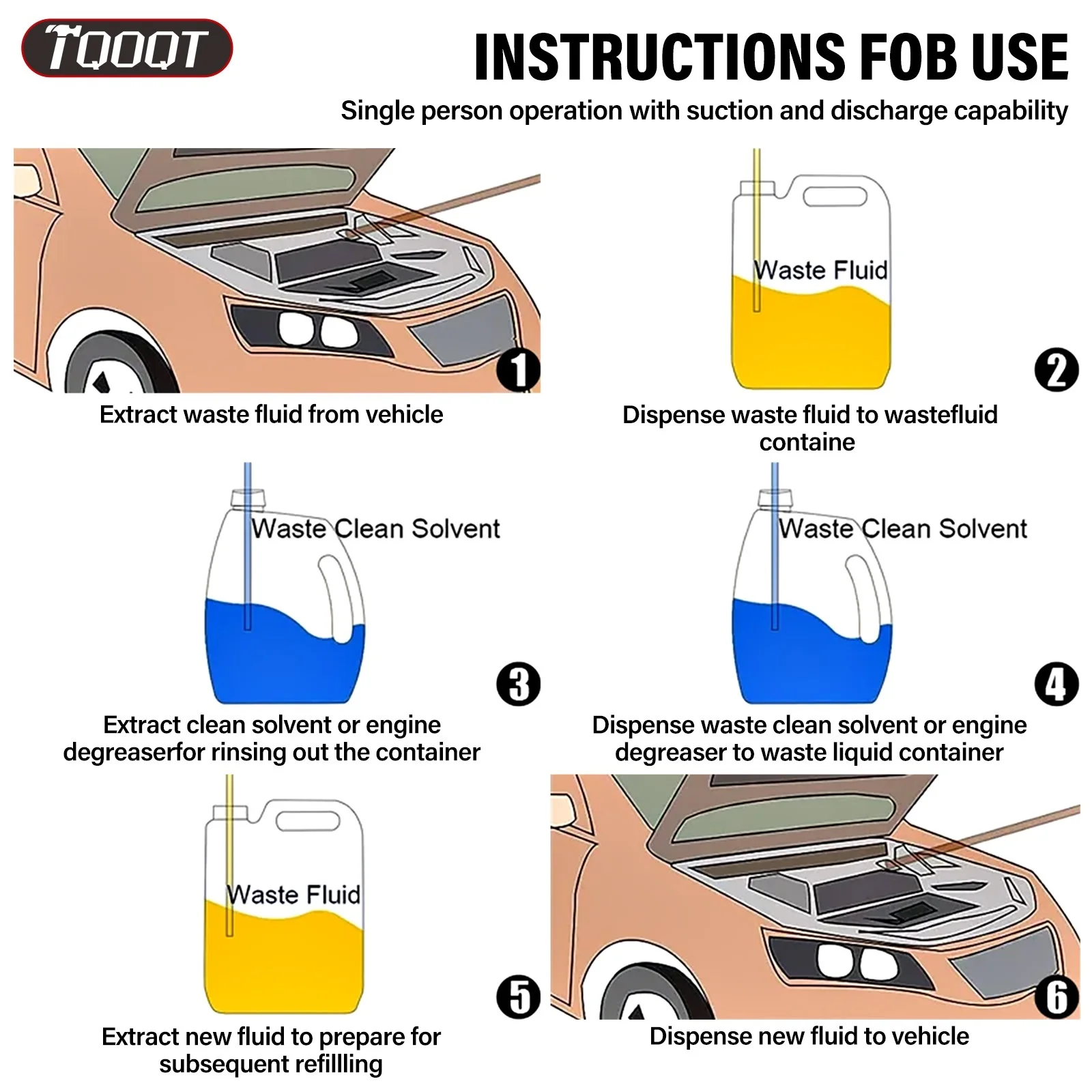

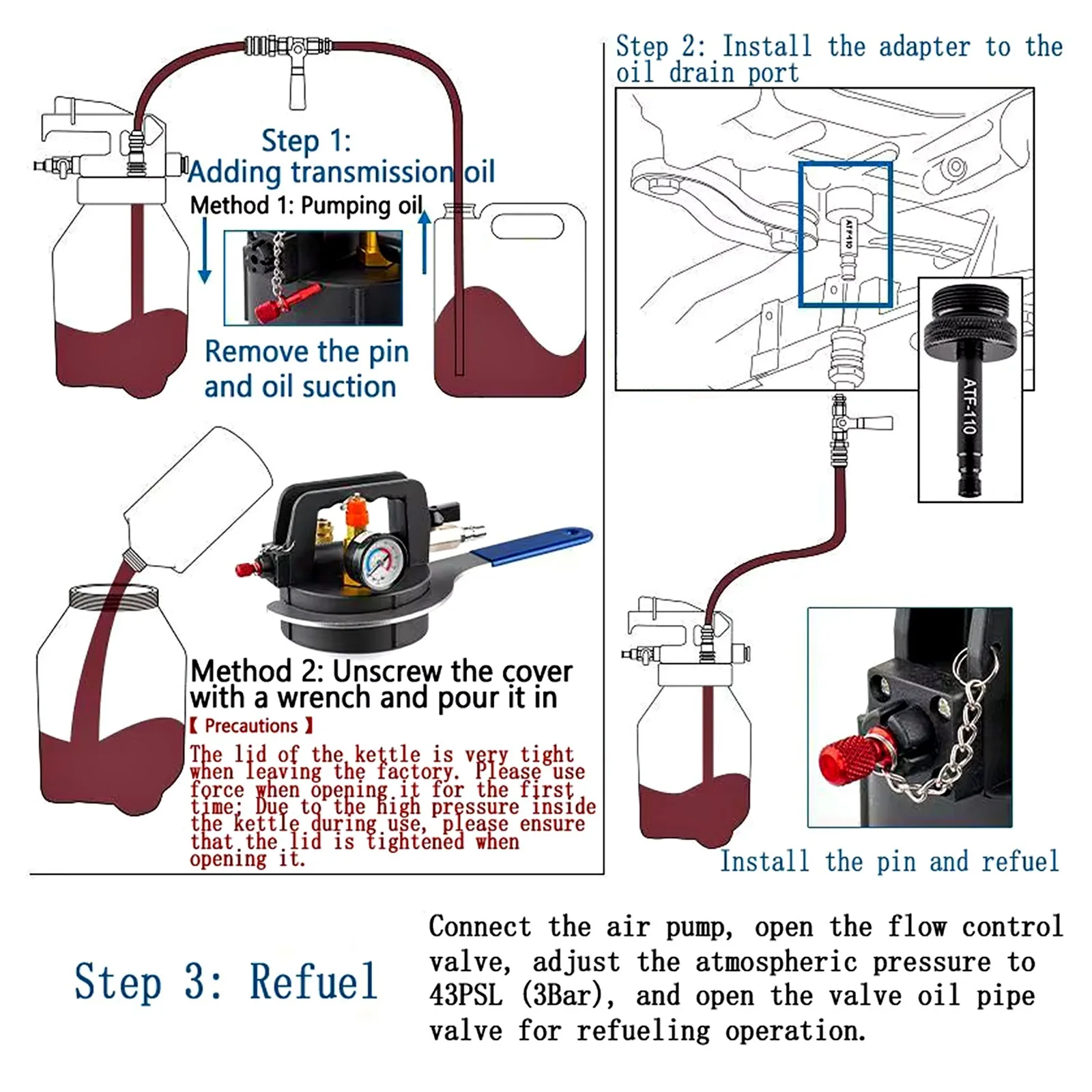

Easy To Use: Open the filling cap and fill the unit using a funnel; Tighten cap and connect dispensing hose; Use the correct adapter then insert into the transmission opening after draining used oil; Use soft grip pump handle to pump liquid from the filler unit to the vehicle; Pressure gauge helps to gauge how fast fluid will move; Do not exceed 20 PSI.



Material: Oil filling adapters are made of aluminum alloy material, anti-rust. High strength, high hardness, not easy to deform and reliable to use

Performance Features ：Checking and changing the transmission fluid keeps the automatic transmission lubricated and running smoothly, and helps prevent clutch wear.ystem.

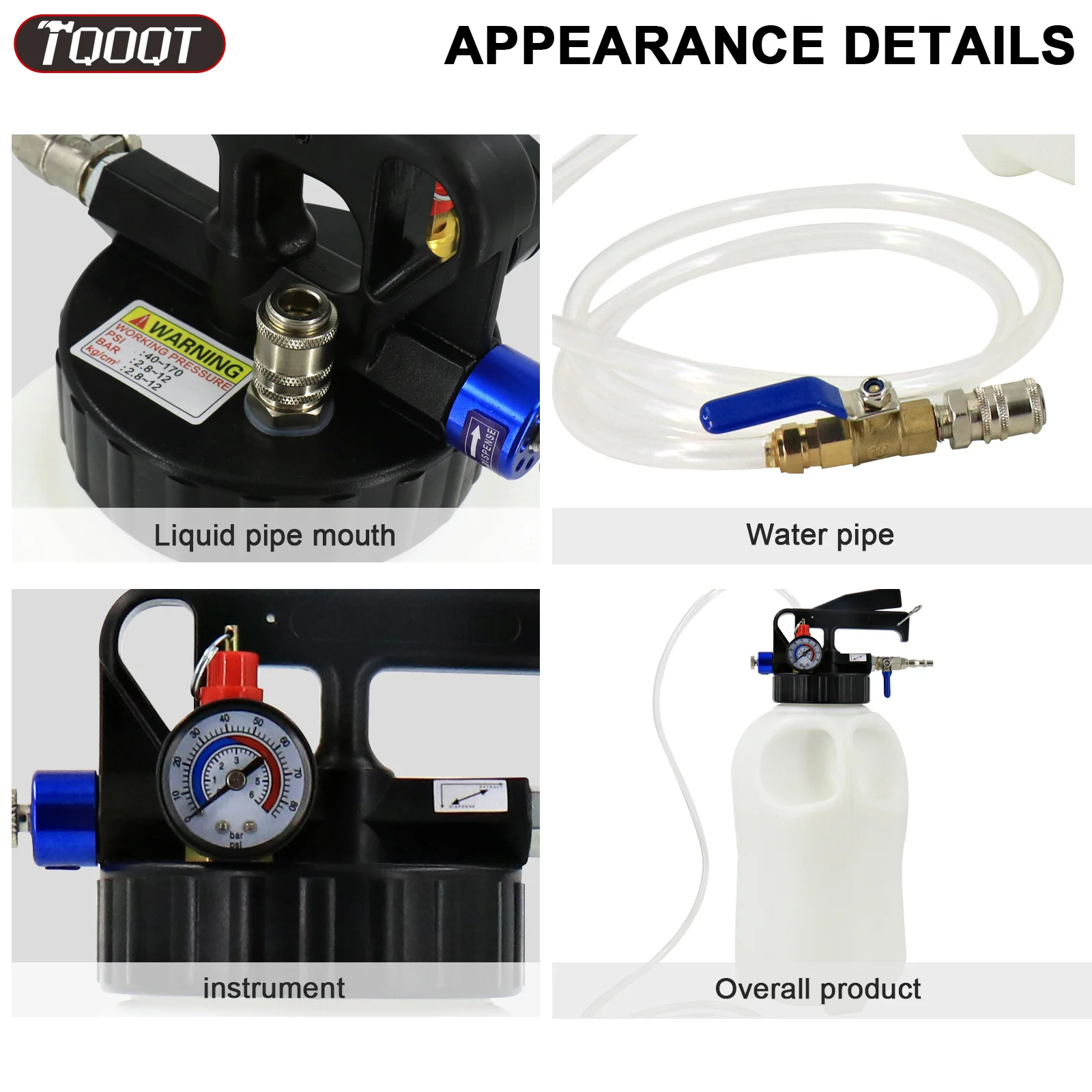

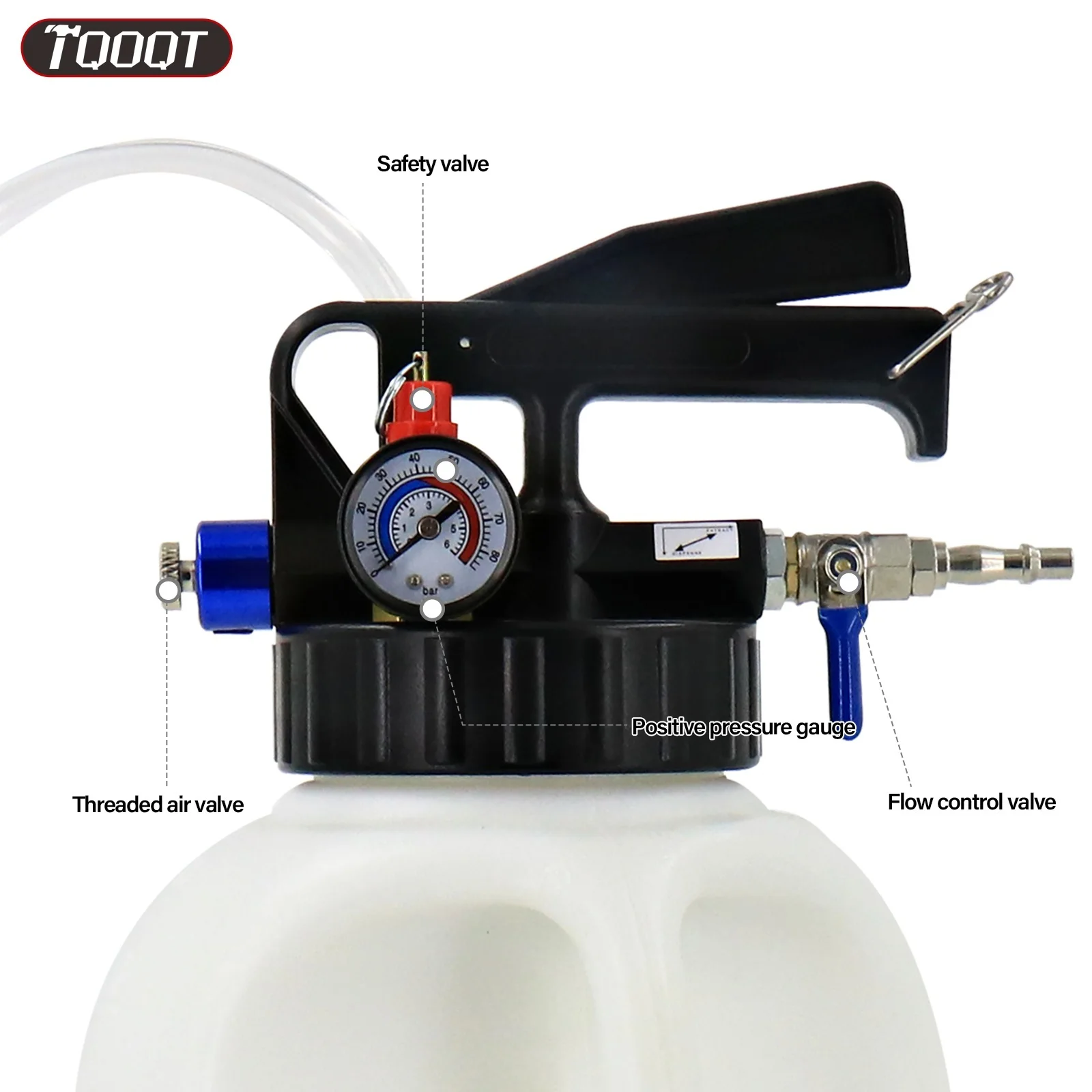

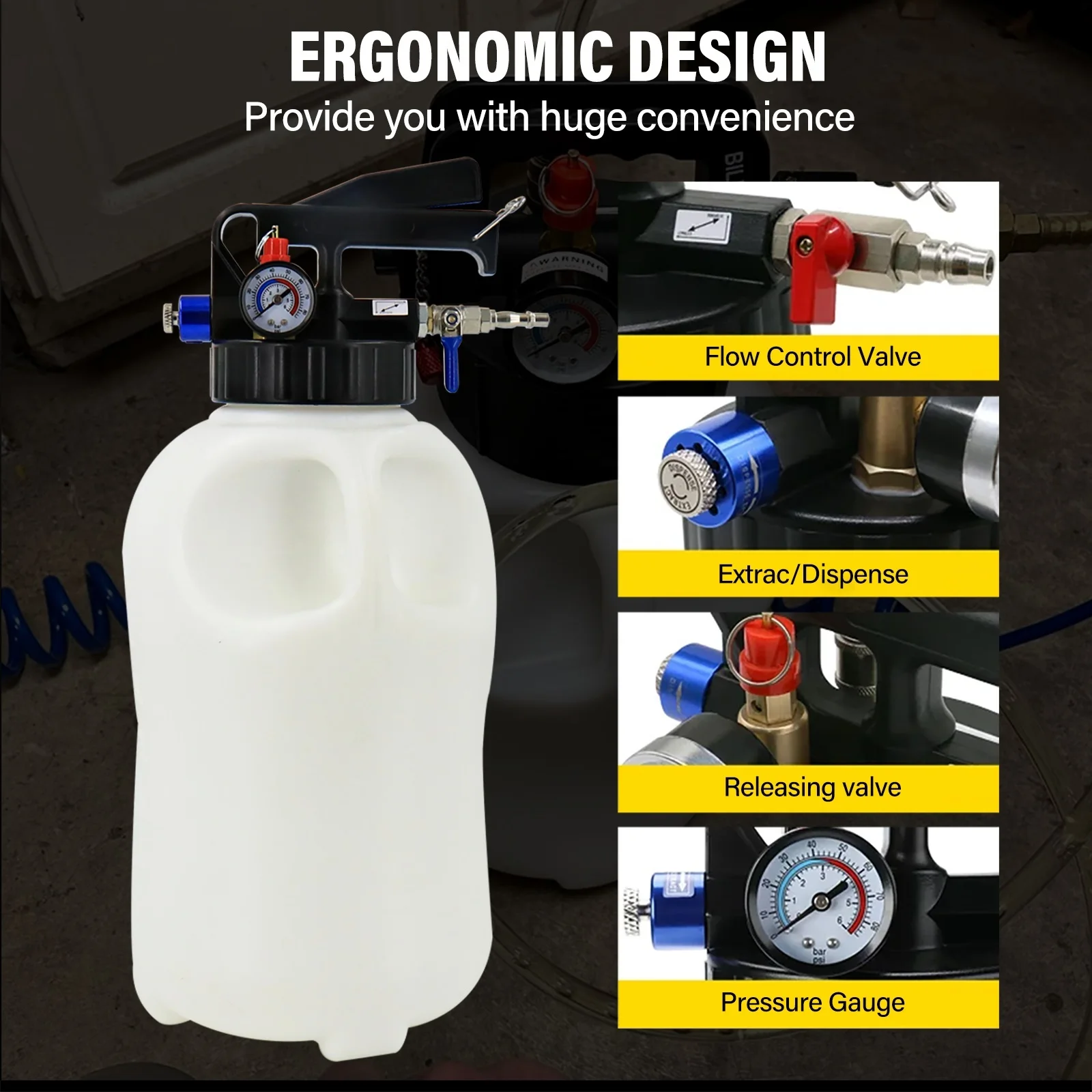

Packing List ：The Automotive Fluid Pump Transmission Fill Kit includes a 10 liter fluid container with pump handle cover, a pressure gauge, a pressure release cap, a tube, and 13 transmission fluid adapters.

This pump tool is designed to dispense and extract the ATF fluid of vehicles.

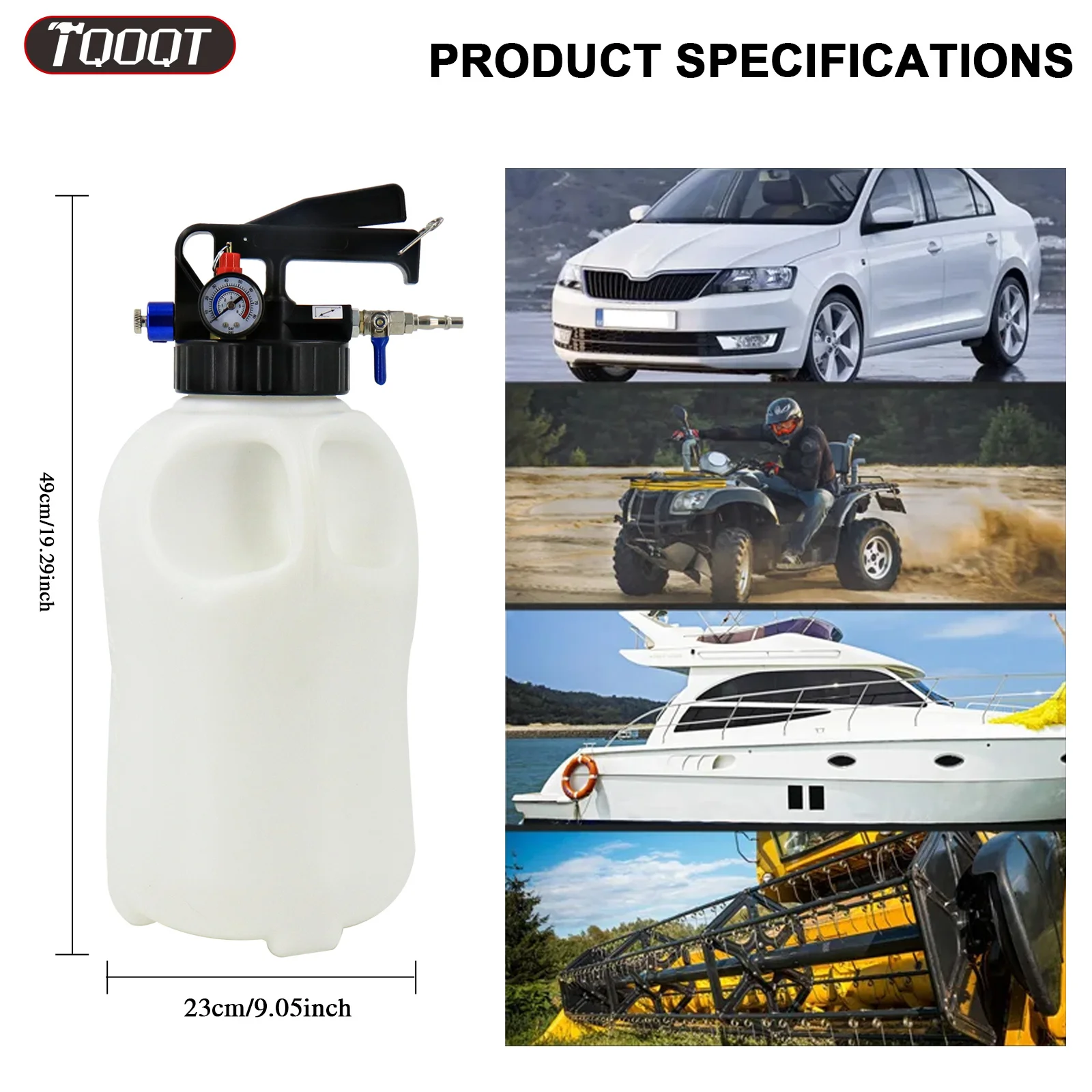

Specifications:

Material: Plastic + Alloy

Features: Dual purpose pumping/filling

Dial range: 0-6bar

Quick coupler: British style

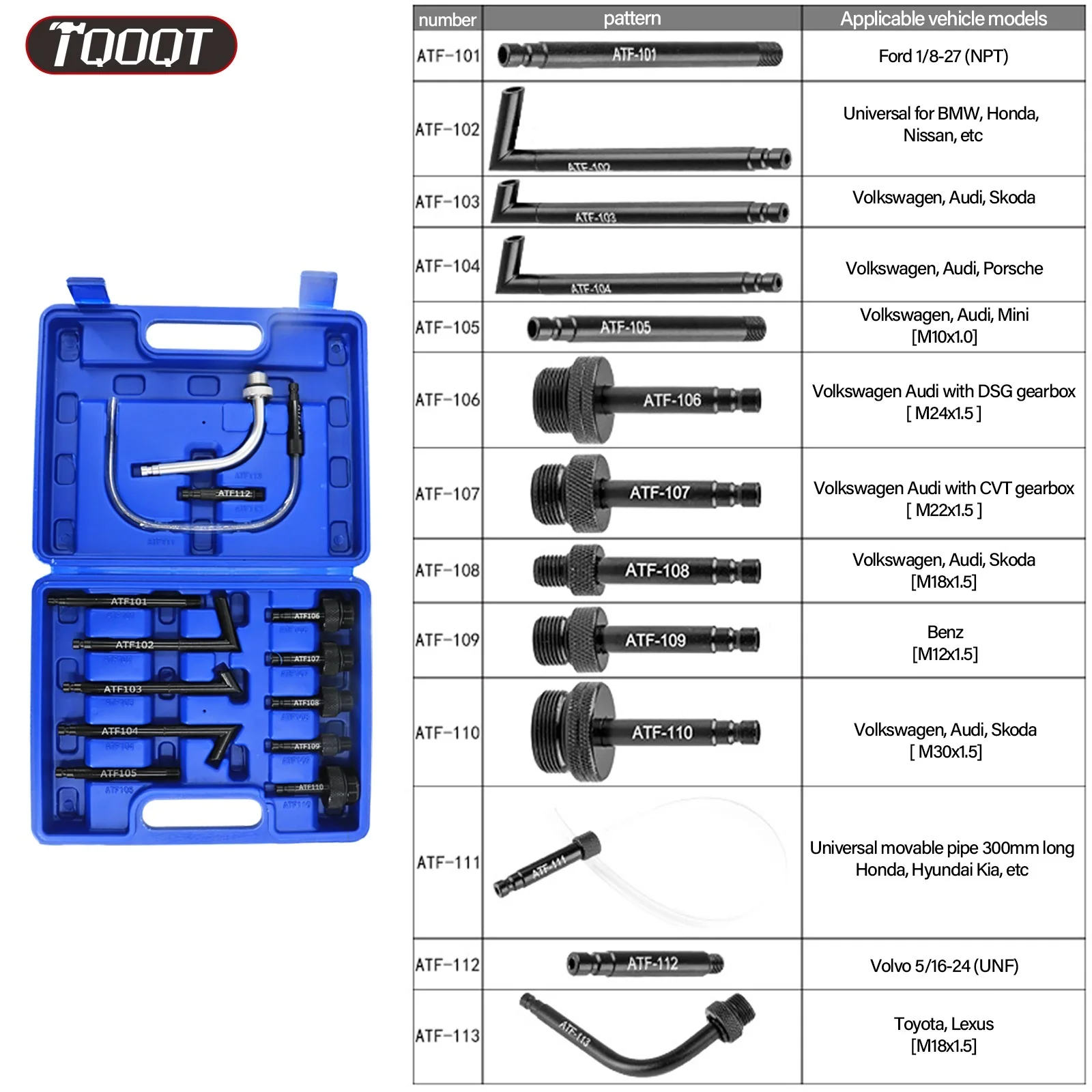

The 13-piece filler fittings are:

ATF-101 for Ford 1/8-27(NPT)

ATF-102 for BMW, Honda, Nissan, etc.

ATF-103 for Volkswagen, Audi, Skoda

ATF-104 for Volkswagen, Audi, Porsche

ATF-105 for Volkswagen, Audi, Mini M10x1.0



ATF-106 for Volkswagen, Audi with DSG gearbox M24x1.5

ATF-107 for Volkswagen, Audi with CVT gearbox M22x1.5

ATF-108 for Volkswagen, Audi, Skoda M18x1.5

ATF-109 for Mercedes-Benz M12x1.5

ATF-110 for Volkswagen, Audi, Skoda M30x1.5

ATF-111 for For GM movable tube 300mm long Honda, Hyundai, Air Pressure etc.

ATF-112 for Volvo, 5/16-24(UNF)

ATF-113 for Toyota, Lexus M18x1.5

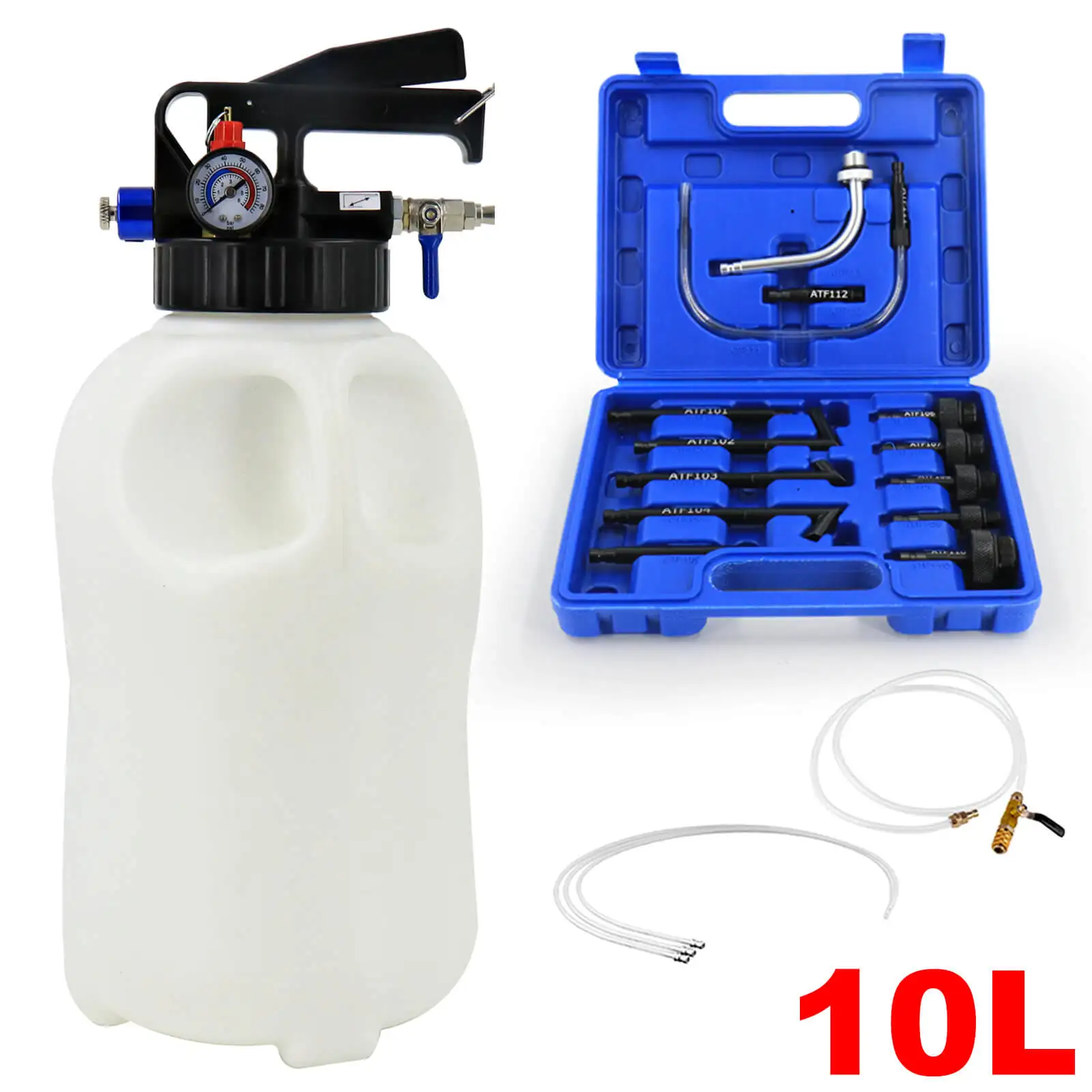

Package included：

1 x 10L oil pumping jug

1 x 13-piece filling head set

1 x 2.1m filler pipe

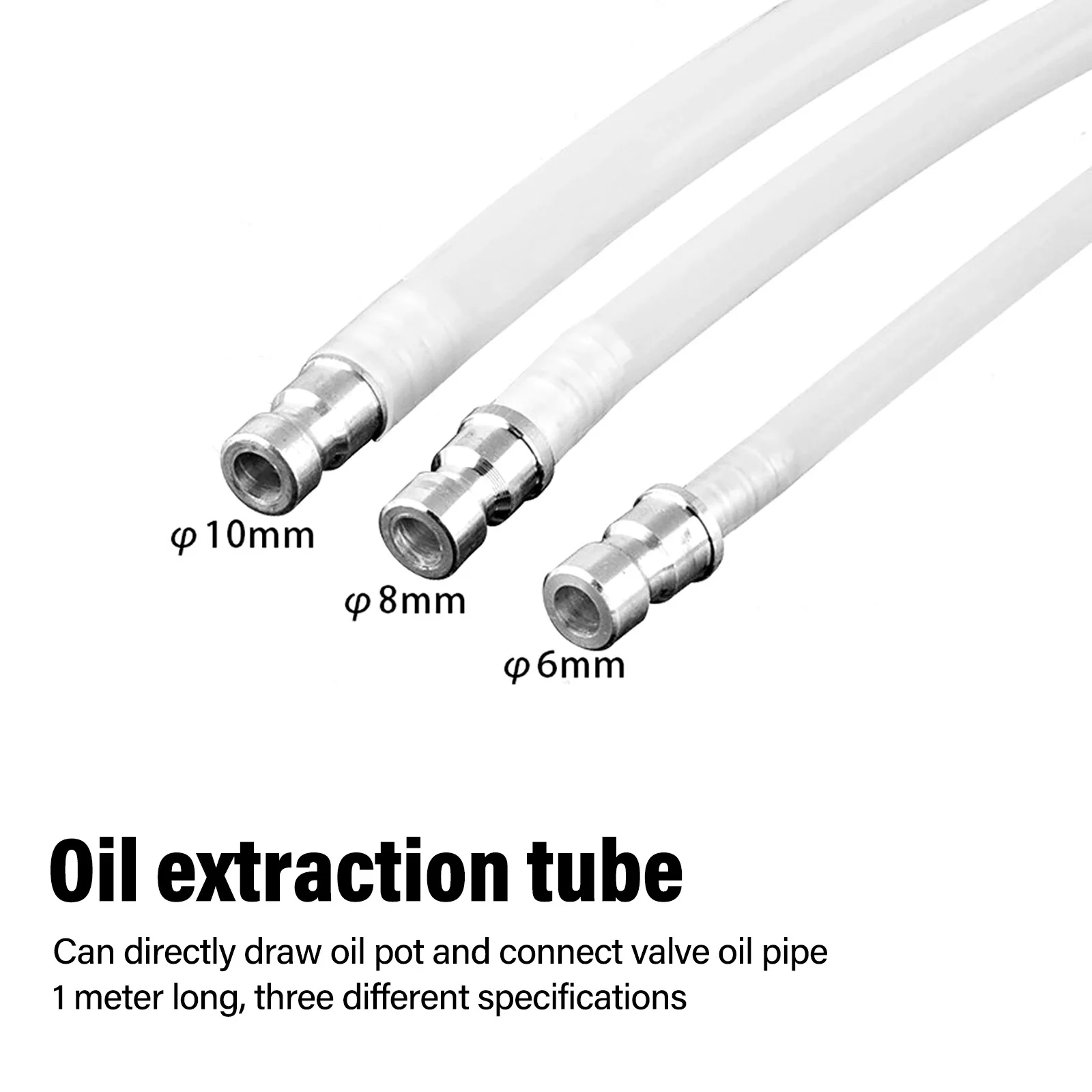

1 x 6mm oil pumping pipe

1 x 8mm oil pumping pipe

1 x 10mm oil pumping pipe
